Annealing in Metals
What is Annealing?
When a liquid metal cools down and becomes solid, its atoms rearrange, but not randomly — they arrange themselves into a regular, repeating pattern called a crystal structure. You can think of this like atoms lining up on an invisible grid. But freezing does not usually happen in just one place. Instead, many tiny crystals start growing at the same time and eventually join up with each other. The solid metal ends up made of millions of small crystals, called grains.
Where these grains meet, the atomic pattern isn’t perfect.
These imperfections are known as defects and you can learn more about these below:
When a liquid metal cools down and becomes solid, its atoms rearrange, but not randomly — they arrange themselves into a regular, repeating pattern called a crystal structure. You can think of this like atoms lining up on an invisible grid. But freezing does not usually happen in just one place. Instead, many tiny crystals start growing at the same time and eventually join up with each other. The solid metal ends up made of millions of small crystals, called grains. Where these grains meet, the atomic pattern isn’t perfect. These imperfections are known as defects.
Defects are small but have a strong influence on the properties of the solid. They can make a material easier to bend or more likely to crack. For example, a metal with many defects might be very hard but brittle, while one with fewer defects may bend more easily without breaking.
The main types of defects are:
- Grain boundaries: These are the borders where differently oriented crystals meet. Atoms here are less neatly packed, usually lowering the electric and thermal conductivity of the metal and making them more prone to corrosion. Grain boundaries also influence how metals deform, usually increasing their mechanical strength.
- Vacancies: A missing atom in the crystal lattice. The concentration of vacancies is usually low in most metals, with only one missing from several thousands of atoms. Vacancies have very little influence on the properties of metals, except for to move within the crystal by “jumping” into empty spaces.
- Dislocations: An irregularity, having an abrupt change in the arrangement of atoms, such as a line-like defects where a whole row of atoms is slightly out of place. Dislocations are crucial because they allow atoms to slip or glide against each other, controlling how metals bend and deform under force.
How does annealing help?
Annealing is a heat treatment used to improve the internal structure of a metal.
When a solid metal is gently heated, its atoms gain energy and start to move slightly — not enough to melt the metal, but enough to rearrange themselves. This extra movement is especially important near defects, where atoms are already under stress.
As the metal is cooled down again (either slowly, or quickly by immersing it into water or oil, a process called quenching), atoms can settle into better, more stable positions. Many defects shrink, move, or disappear altogether: dislocations rearrange or cancel out, grain boundaries move and larger grains grow. Repeating this heating and cooling process can gradually make the crystal structure more ordered and reduce internal stress in the material, making metals more ductile, less hard, and usually easier to shape and form.
How can computers help us understand defects?
Many defects are far too small to see directly, even with powerful microscopes. This is where computational modelling becomes a powerful tool.
Using physics-based models, scientists can simulate metals atom by atom on a computer. These simulations allow us to:
- zoom in on individual defects and watch how they move and evolve,
- track diffusion of atoms and structure around vacancies,
- study and compare the stability of different defects,
- and even simulate annealing itself, heating and cooling a virtual metal to see how its structure improves.
By combining experiments with simulations, we can better understand why materials behave the way they do — and design metals with improved properties before they are ever made in the lab.
Students studying defects and microstructure in metals by computational modelling within the HetSys CDT are Matt Nutter, Joseph Duque-Lopez, Facundo Costa and Tristan McCarthy. Find out more about their work here.

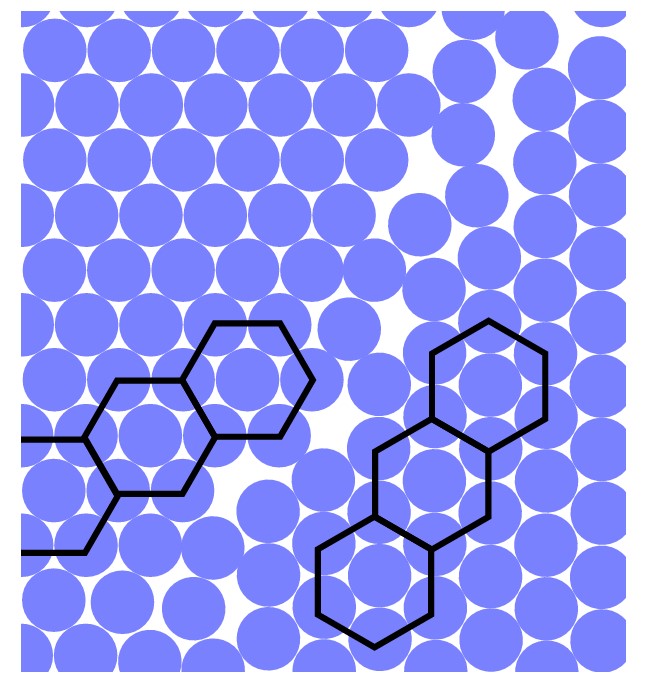

Grain Boundary
These are the borders where differently oriented crystals meet. Atoms here are less neatly packed, usually lowering the electric and thermal conductivity of the metal and making them more prone to corrosion. Grain boundaries also influence how metals deform, usually increasing their mechanical strength.
Vacancy
A missing atom in the crystal lattice. The concentration of vacancies is usually low in most metals, with only one missing from several thousands of atoms. Vacancies have very little influence on the properties of metals, except for diffusion: allowing atoms to move within the crystal by “jumping” into empty spaces.
An irregularity, having an abrupt change in the arrangement of atoms, such as a line-like defects where a whole row of atoms is slightly out of place. Dislocations are crucial because they allow atoms to slip or glide against each other, controlling how metals bend and deform under force.
