Harmonic Rejection Mirrors

A double-mirror harmonic rejection system is installed in the experimental hutch to overcome harmonic contamination from the monochromator. This is also exagerated by preferential absorption of the Si (111) reflection in the beryllium windows compared to the (333) and (444) reflections. The pyrex mirrors are rhodium-coated over half their width to cover the energy range 6 - 15 keV; no coating is necessary at the lower energies and the angular range is 3 - 7 mrad. An image of the mirror system is shown below.


Phase-Plates and Flipper

The incident linear polarised radiation can be converted into circular polarisation (Pc) either from X-rays emitted above/below the electron orbit or using a quarter-phase-plate. The latter technique is the only way to look at highly anisotropic magnetic materials for which the direction of the sample magnetisation cannot be reversed. The phase-plate assembly is situated upstream of the diffractometer. The phase-plate crystal is mounted on a Huber goniometer and is driven to the quarter-wave-plate conditions, for maximum Pc, with a theta and a chi circle. The former rotation stage, which moves the crystal off the Bragg condition, has an accuracy of 10-4° (0.36 arcseconds). It is orthogonally mounted on the chi circle. The chi circle sets the optical axis of the phase-plate at 45° to the incident and plane polarization, with an accuracy of ±10 arcseconds. A counter-balance is also mounted onto the arm of the chi circle. These two circles are positioned upon two translation stages giving horizontal and vertical adjustment within 10 µm. All the motors are controlled from the SPEC software, which is also used elsewhere on the beamline. The theta circle has an encoder installed. A full description of the operation of phase-plates on XMaS can be found here.

phase_plates.jpg phase_plates2.jpg

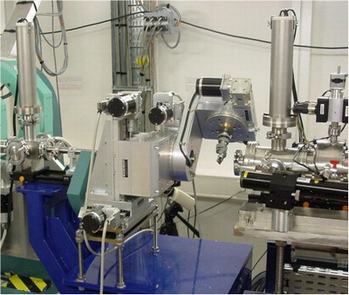

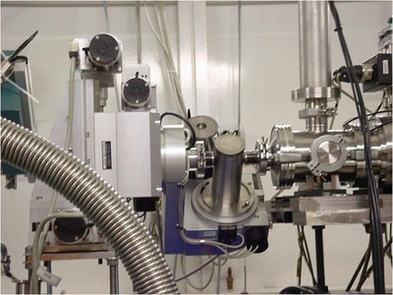

Phase-plate assembly In-vacuum phase-plate for low energy (~3 keV) optimisation

Currently there are three diamond phase-plates at XMaS, which are described below:

Diamond Thickness (mm) Cut Energy Range (keV)
0.8 (110) 5 - 13.5
0.3 (110) 3 - 5
0.1 (001) 3 - 5

In addition there is now the facility to use a thin Si (111) phase plate optimised for sub 3 keV operations.

Specific spectroscopy experiments such as X-ray Magnetic Circular Dichroism (XMCD) require to reverse the degree of circular polarisation (or helicity) at a few tens of hertz in order to improve the signal-to-noise ratio. In that respect, a piezo driven oscillation stage, the so-called flipper, was designed by the National Physical Laboratory (UK). The device uses two pairs of multilayer piezoelectric stacks mounted on opposite sides of, and coupled to, an aluminium plate which is free to rotate via two weak links. They are driven in opposite directions to provide displacement of up to 350 arcseconds. This specification, considerably larger, allows each diamond to be used in a wider energy range. A second advantage is that this flipper is very compact compared to existing oscillation stages and allows easy mounting on the phase-plate Huber 410 circle. The phase-plate is attached to a small copper goniometer which screws into an aluminium adapter plate. The resulting block is then mounted onto the aluminium plate with weak links. Two manual linear translations allow positioning of the phase-plate crystal at the centre of rotation of the phase-plate assembly.

diamond1.jpg diamond2.jpg

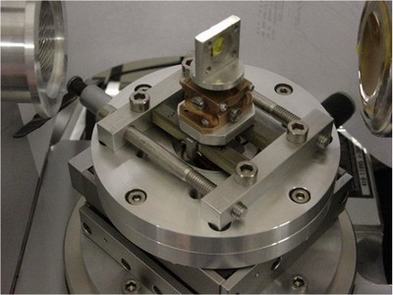

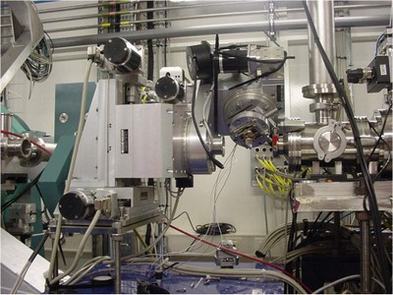

Diamond crystal mounted on the phase-plate flipper Phase-plate assembly with the diamond flipper

In normal operation, the flipper is driven by a 11.5 Hz trapezoidal wave form generated by a TGA1240 arbitrary wave form generator. The signal is amplified by a PI LVPZT amplifier unit and then sent across both piezo pairs.

Modular Sections

A flexible modular beam delivery system is installed in the experimental hutch allowing the continuation of an air-free path from the beamline final slit vessel to the diffractometer. It is comprised of two tubular assemblies vertically displaced, the lower tube encloses the unfocused monochromatic or white beams and the upper one the focused monochromatic beam. The main stand can accommodate up to eight modular vessels, four above and four below, mounted on X95-compatible carriages. Each vessel is 150 mm long and interconnects through DN100 vacuum flanges making the relative positioning of the vessels flexible. Modules are provided that contain: beam intensity monitor; motorised anti-scatter slits; pneumatically operated attenuator foils. A typical arrangement is illustrated below. The system is terminated using adjustable length telescopic tubes that allow continuation of vacuum close to the sample position. The vacuum path is closed with a beryllium, kapton or mylar widowed flange.


Tube Slits

These slits were developed in order to define the incident or outgoing beam at a position very close to the sample. The design adopted satisfies three basic requirements, which are to define a footprint on a sample, to reduce background scatter and to enable isolation of small regions of interest on the sample. The assembly may equally well be mounted on the incident or diffracted beam path. In order to avoid possible collisions with the diffractometer all of the actuation mechanics are spatially separated from the sample position, with the four independent slit jaws positioned by a system of levers as shown below. The maximum overall opening aperture of the slit assembly is 4 x 4 mm and each jaw can be independently positioned to micron precision. The slit assembly may be mounted on X95 compatible optical rail and is therefore interchangeable with other beam-line modular components. Motion is provided to the levers through in-house designed miniature linear vacuum feed-through with limit switches fitted on all translations.

tube  tube_piccie.jpg
3D Model Assembled tube slits in use on XMaS


These slits are now Huber products and technical details can be found here.
